Custom Solid Wood Microphone Packaging Box

Custom solid wood microphone packaging box

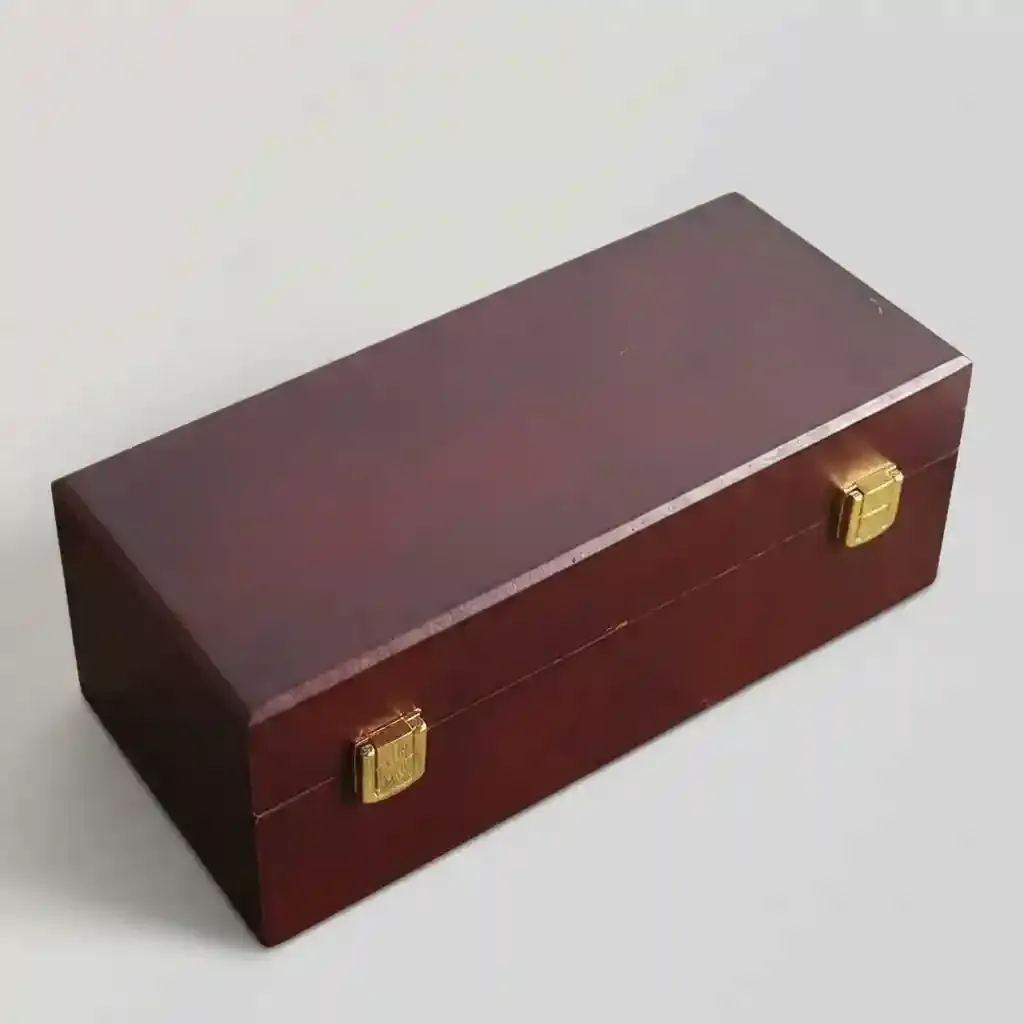

A solid wood box built to hold a single wireless microphone — foam-lined, brass-hinged, and finished in a dark vintage stain. Audio brands use these as retail packaging for handheld mics, karaoke sets, and studio gear where the box is part of the product. The wood does the protecting, the foam does the fitting, and the hardware keeps it closed through shipping and daily use.

Construction and materials

The box is assembled from kiln-dried solid wood panels. We typically use pine for cost-sensitive runs — it machines clean, takes dark stain evenly, and the grain reads as wood rather than plastic. Paulownia is the lighter option if freight weight matters. Both species are stocked in standard thicknesses (8mm to 12mm), though panel thickness is set based on the box dimensions and the weight of the mic going inside.

The interior is a CNC-cut foam insert — usually EVA or polyurethane, chosen for density and rebound. The insert cavity is routed to the exact outline of the microphone body, so the mic sits fully supported. No rattling, no pressure points on grilles or switches. If you change microphone models, we cut a new foam mold from your CAD or a physical sample.

Hardware and closure

Brass-plated hinges and dual front clasps are standard. The dual-clasp setup isn't cosmetic — a single center clasp on a box this size leaves the corners slightly unseated. Two clasps at roughly one-third and two-thirds of the front width pull the lid down evenly across the full span. Same principle as instrument cases.

Hinge mortises are routed with a jig so both leaves sit at the same depth. If one hinge sits 0.3mm shallower than the other, the lid rocks on that corner — multiplied across the lid width you get a visible gap. We check this on every sample and spot-check during production.

Finish and appearance

The standard finish is a dark reddish-brown stain with a matte clear coat. It's a vintage look that works well for retro-styled microphones and karaoke gear. Other options: natural clear coat (keeps the raw wood color), custom color stains matched to your brand palette, or full painted finishes in any Pantone. The stain goes on in multiple passes so it penetrates rather than sitting on the surface — this matters because surface-only stain shows scratches immediately, while penetrated stain hides minor handling marks.

Customization and branding

Everything is made to order: box dimensions, wood species, panel thickness, interior foam layout, stain color, hardware finish, and branding method. Logo application options are laser engraving (burns a permanent dark mark into the wood — best contrast on lighter woods), silk-screen printing (lowest per-unit cost at volume, works on any surface), or foil stamping (metallic finish for a dressier look).

Custom foam cutouts are the most common request. We work from your CAD file, a dimension sheet, or a physical microphone sample you ship to us. The foam is cut slightly undersized — about 0.5mm smaller than the mic body in each dimension — so the fit is snug without requiring force to insert or remove the microphone.

Production and quality checks

Each box goes through five checkpoints: wood moisture content at incoming (target 8–12%), panel dimensions after cutting, joint fit-up before assembly, finish consistency after staining, and final function check (hinge movement, clasp engagement, foam fit). For bulk orders we do AQL sampling — typically 2.5% Level II, which catches finish variation and hardware issues before they leave the factory.

Lead time on a new custom design runs 15–25 days after sample approval. Reorders with no design changes run 10–15 days. MOQ starts at 200 pieces for a new custom design; simpler designs with standard materials can go lower.

Frequently Asked Questions

• What foam types do you use?
  EVA (ethylene-vinyl acetate) and polyurethane are both available. EVA is denser and holds its shape longer through repeated use. Polyurethane is lighter and costs less. We'll recommend based on whether the box is retail packaging (opened once) or a permanent storage case (opened repeatedly).
• Can you adjust the box for different microphone sizes?
  Yes. Dimensions, panel thickness, and foam layout are all set per order. Send us your microphone dimensions or a sample and we build the box around it.
• What wood species are available?
  Pine (standard), paulownia (lightweight), birch plywood (best screw retention for hinge panels), and walnut or oak for small-volume runs where the wood itself is a selling point. Pine and paulownia cover most orders.
• How is the logo applied?
  Laser engraving, silk-screen printing, or foil stamping. Laser engraving is the most common for microphone boxes — it's permanent, no ink to wear, and the darkened mark works with the vintage look. Setup cost is a one-time die or screen fee, not a per-unit charge.
• Does the box need fumigation for export?
  Solid wood packaging may require ISPM-15 fumigation depending on the destination country. If your shipment needs it, we arrange the treatment and provide the certificate. Engineered wood (plywood) and bamboo are exempt in most countries.
