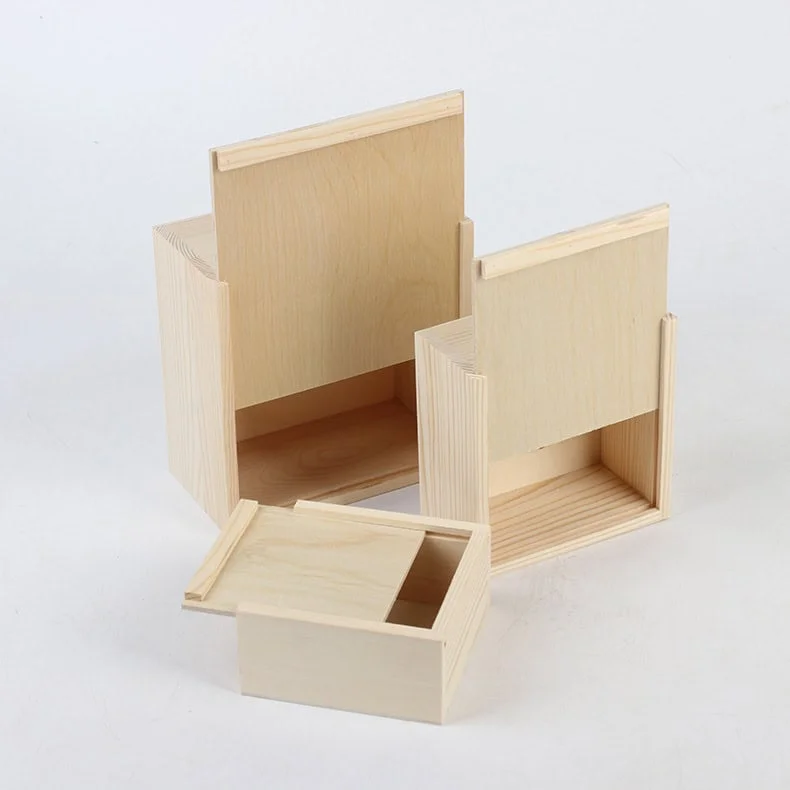

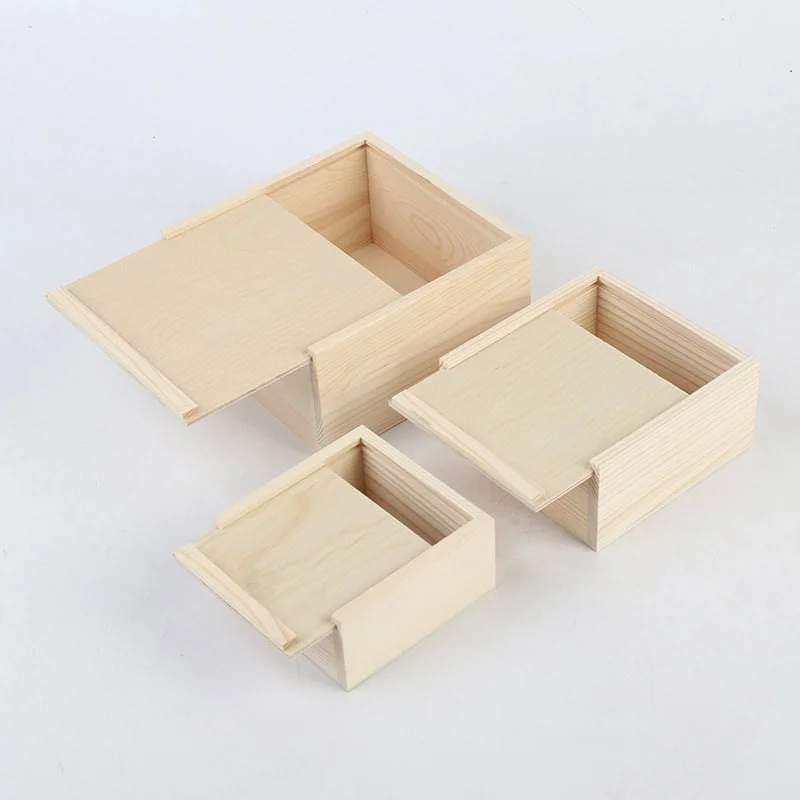

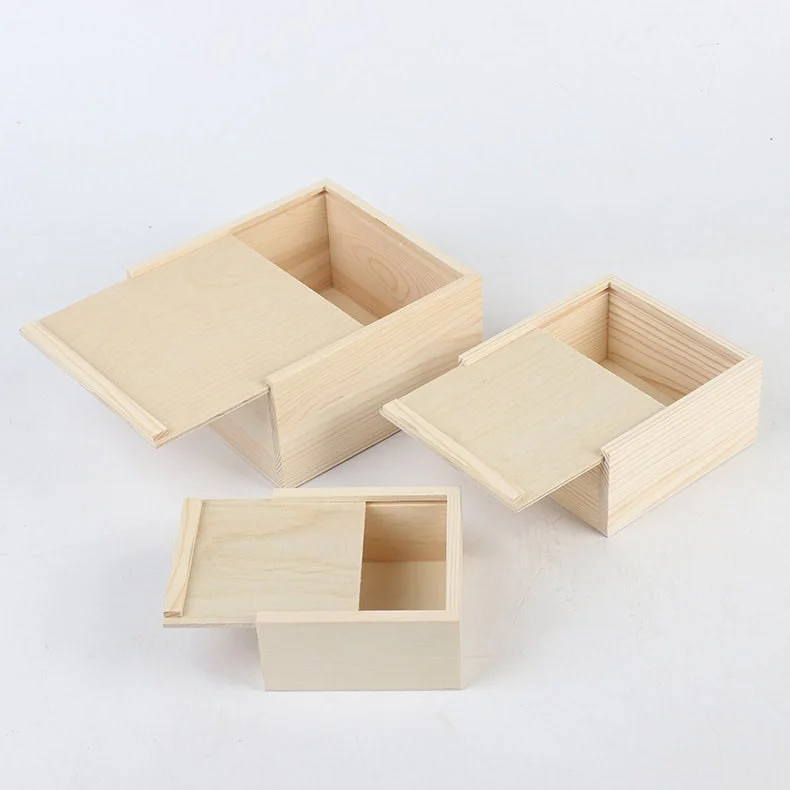

Custom Sliding Lid Wooden Storage Boxes

Solid wood storage boxes with sliding lid mechanism, suitable for space-efficient storage where overhead clearance is limited.

Key Features

Sliding lid mechanism — the lid slides horizontally in grooves routed into the box side walls; unlike a hinged lid (which needs overhead clearance to swing open) or a lift-off lid (which needs a place to set the lid down), the sliding lid stays in the box's footprint at all times — ideal for tight shelving, under-cabinet storage, and stacked configurations
Zero-clearance opening — the box can be opened fully while another box or shelf sits directly above it with as little as 2mm of clearance; this is impossible with a hinged lid and impractical with a lift-off lid; for retail shelving where vertical space is premium, this is the lid type that actually works
Solid wood construction — available in pine, paulownia, or birch; the sliding lid grooves are integral to the box walls (not applied hardware), so the sliding mechanism is part of the wood structure itself — no metal runners to corrode, no plastic tracks to break
Minimalist aesthetic — the sliding lid produces a clean, uninterrupted exterior with no visible hinges, clasps, or hardware; the only visual indication of the lid is a thin seam line around the box perimeter; the aesthetic is modern and architectural
Smooth sanded finish — natural wood grain visible on all surfaces; available unfinished for DIY customization or with clear varnish, stain, paint, or charred finish options

Price Range

$1.20 - $4.50 / piece

Prices vary based on order quantity, dimensions, material selection, and logo printing method. Send an inquiry for a customized quote.

Specifications

Materials: Pine, paulownia, or birch wood
Lid: Sliding wood panel in routed grooves
Lid Pull: Finger groove, wooden knob, metal ring, or extended lid lip
Application: Under-shelf storage, stacked retail display, minimalist gift packaging

Applications

Under-shelf and cabinet storage

Where boxes live on shelves with limited vertical clearance — under kitchen cabinets, inside bookcases with fixed shelves, in bathroom medicine cabinets; the sliding lid provides full access without requiring the overhead space a hinged lid demands.

Stacked retail display

Where boxes are stacked directly on top of each other on retail shelves — each box in the stack can be opened by sliding its lid out without disturbing the boxes above; hinged lids would require unstacking the entire column to open the bottom box.

Minimalist gift and product packaging

Where the clean, hardware-free exterior aligns with a modern, minimalist brand aesthetic — the sliding lid creates a seamless box profile that photographs cleanly and presents as refined and architectural.

Customization Options

Wood species: Pine (standard) — good balance of cost, durability, and grain appearance. Paulownia — lighter weight for shipping-sensitive applications. Birch — finer, more uniform grain for a more refined appearance and smoother sliding action. Bamboo — hardest option, most wear-resistant sliding surfaces.

Dimensions: Fully customizable. The sliding lid groove occupies approximately 4mm of the interior wall height on each side — the usable interior height is approximately 8mm less than the exterior box height. The lid itself is a flat panel approximately 6–8mm thick that slides in the groove. Standard aspect ratios are rectangular (the sliding direction is along the longer dimension for smoother operation).

Finish: Natural sanded (standard). Clear varnish for a protected, finished look. Stained, painted, or charred finishes available. For the sliding lid to operate smoothly, the finish in the lid grooves must be applied thinly — a thick paint buildup in the groove can cause the lid to bind. We mask the grooves during painting or apply finish by hand to the groove surfaces to maintain clearance.

Lid pull option: Finger groove — a routed depression in the lid surface for thumb grip; cleanest look, no hardware. Wooden pull knob — a small wooden knob glued to the lid surface; easiest to grip, adds a traditional furniture detail. Metal pull ring — a small recessed ring fitting; industrial aesthetic. No pull — the lid extends slightly past the box front when closed, providing a lip to grip.

Branding: Laser engraving on the lid — the large flat lid surface is the best engraving canvas among all lid types. Screen printing for multi-color designs. The sliding lid can be fully removed for branding application and reinserted — easier to brand than a hinged lid box where the lid is attached.

Ready to get a recommendation?

Send us your requirements — we'll respond with material and production recommendations within 24 hours.

Why This Design Works

The sliding lid is the only lid mechanism that operates entirely within the box's footprint — and for tight spaces, that's not a nice-to-have, it's the only option that works. A standard kitchen wall cabinet has approximately 30–35 cm of vertical clearance between shelves. A 10 cm tall box with a hinged lid needs at least 20 cm of overhead clearance to open fully (lid height plus the swing arc). That means the box can only be placed on the top shelf, or it can't be opened inside the cabinet at all — the user has to take the box out, open it, use it, close it, put it back. A sliding lid box of the same height needs exactly zero additional vertical clearance — it opens inside the cabinet, on any shelf. For a pantry organizer or under-sink storage box, the sliding lid is the difference between a box that works in place and a box that has to be removed to be used. That's a fundamental usability difference, not a minor feature variation.

The sliding lid's integral construction — where the lid track is routed into the box walls, not applied as separate hardware — is both a manufacturing advantage and a durability feature. Applied metal drawer slides have multiple failure modes: screws loosen, bearings wear, tracks bend. An integral wood groove has one failure mode: the wood wears to the point where the lid is loose. That takes years of daily use because the lid slides on a large wood-to-wood contact surface, not concentrated point-load bearings. The groove is part of the box wall — it can't come loose because it's not a separate part. This integral design means a sliding lid box will function correctly for essentially the life of the wood, which is decades for an indoor-stored box. The manufacturing advantage is simpler assembly: the lid goes into the groove during box assembly, no separate hardware installation step.

The sliding lid creates the cleanest exterior profile of any lid type — no hinges, no clasp, no visible hardware, just a thin seam line. For brands with a minimalist aesthetic, this matters. The box photographs as a clean rectangular volume from every angle — no hinge barrels protruding from the back, no latch plate interrupting the front face. The branding or engraving on the lid is the only visual feature. For luxury and design-forward brands, this visual cleanliness is worth the trade-off of slightly less convenient opening (sliding takes a bit more dexterity than flipping a hinge).

Manufacturing Considerations

The #1 quality risk is lid binding — if the groove is too tight, the lid sticks; if too loose, the lid wobbles and can fall out. The lid-to-groove clearance must be 0.3–0.5mm on each side (top and bottom of the groove). Tighter than 0.2mm and the lid binds, especially if humidity causes slight wood expansion. Looser than 0.6mm and the lid feels loose and rattly. We cut the groove with a slot-cutting router bit and plane the lid to thickness after the groove is cut — the lid thickness is matched to the actual groove width (not the nominal specification) for each production batch. After assembly, each box is tested: slide the lid through full travel 10 times — the lid must move with consistent, moderate friction (approximately 3–5 Newtons of force), no sticking points, no free-fall zones.

Wood expansion across the lid's width (perpendicular to the sliding direction) can cause seasonal binding in humid environments. The lid is a flat panel of solid wood — it expands and contracts across its width with humidity changes. If the groove is cut to a tight tolerance in a dry factory (40% RH) and the box is shipped to a humid destination (70% RH), the lid can expand by 0.5–1mm across its width and bind in the groove. We account for this by cutting the groove 1–1.5mm wider than the lid on each side (the lid edges, not the top/bottom clearance), providing room for cross-grain expansion. For orders shipping to consistently high-humidity destinations, we increase this clearance to 2mm per side.

The sliding lid's edge where the user grips it to open receives concentrated wear — the finish and wood at the grip point will show use faster than any other part of the box. Over hundreds of open/close cycles, the thumb/finger contact point on the lid's leading edge can develop a polished or darkened area where skin oils and friction have changed the surface. This is normal wear for a sliding lid mechanism — it's the same phenomenon as a frequently touched door handle or light switch plate. For painted boxes, this wear is more visible (paint can thin or shine at the contact point). For natural wood boxes, the wear develops into a subtle patina that adds character. For high-use applications (retail display, daily-access storage), we recommend a wooden pull knob or metal ring that takes the wear instead of the lid edge itself.

Have a technical concern about your use case? Our team can walk you through how we'd handle it for your project.

Hilon Wood Recommendation

Start with the medium rectangular format (approximately 25×15×8 cm) in natural pine with the finger-groove lid pull. This size fits standard kitchen and bathroom cabinets, provides enough interior volume for meaningful storage (tea boxes, spice jars, desk supplies), and the pine material keeps the cost accessible for multi-unit purchases (a customer buying 4–6 boxes for a pantry organization project). The finger-groove pull is the cleanest aesthetic — no applied hardware to come loose or clash with decor. For the premium SKU, offer birch with clear varnish — birch's finer grain and the varnish finish elevate the box to furniture-grade, appropriate for visible living-space storage (coffee table remotes, bookshelf accessories) rather than hidden cabinet storage. For the value SKU, paulownia with no pull (extended lid lip) hits the lowest price point, suitable for volume orders where the box is a component of a larger product (packaging insert, retail fixture).

Start Your Project

Send us your design or reference images — we'll return with a pre-production sample for your approval.

Frequently Asked Questions

Will the lid fall out if the box is turned upside down?

The lid is retained in the groove by friction — it won't fall out under normal handling or if the box is briefly inverted. If the box is shaken vigorously while inverted, the lid may slide out. For applications where the box will be transported in various orientations, we recommend adding the lid-lock feature — a small wooden pin that inserts through a hole in the box wall and lid, locking the lid in the closed position during transport.

Does the sliding lid mechanism wear out over time?

The wood-on-wood sliding mechanism is inherently durable — it's the same principle as a traditional wooden drawer slide that lasts decades. The primary wear factor is the finish in the groove wearing smooth, which actually improves the sliding action over time. The mechanism can handle thousands of open/close cycles without developing looseness or binding. The limiting factor is typically not the mechanism itself but the box's overall structural integrity.

Can the lid be completely removed for cleaning?

Yes. The sliding lid can be fully removed by sliding it out past the open position. The box interior can then be cleaned, and the lid reinserted by aligning it with the grooves and sliding it back in. This is a cleaning advantage over hinged lid boxes, where the attached lid can obstruct interior access during cleaning.

What's the difference between this and a lift-off lid box?

The sliding lid stays attached to the box (in the grooves) — it slides open and closed without ever leaving the box. A lift-off lid must be completely removed and set aside. Choose the sliding lid when overhead clearance is limited (under shelves, inside cabinets) and when you want the lid to stay with the box. Choose a lift-off lid when you want the simplest possible mechanism and full top access when the lid is removed.
