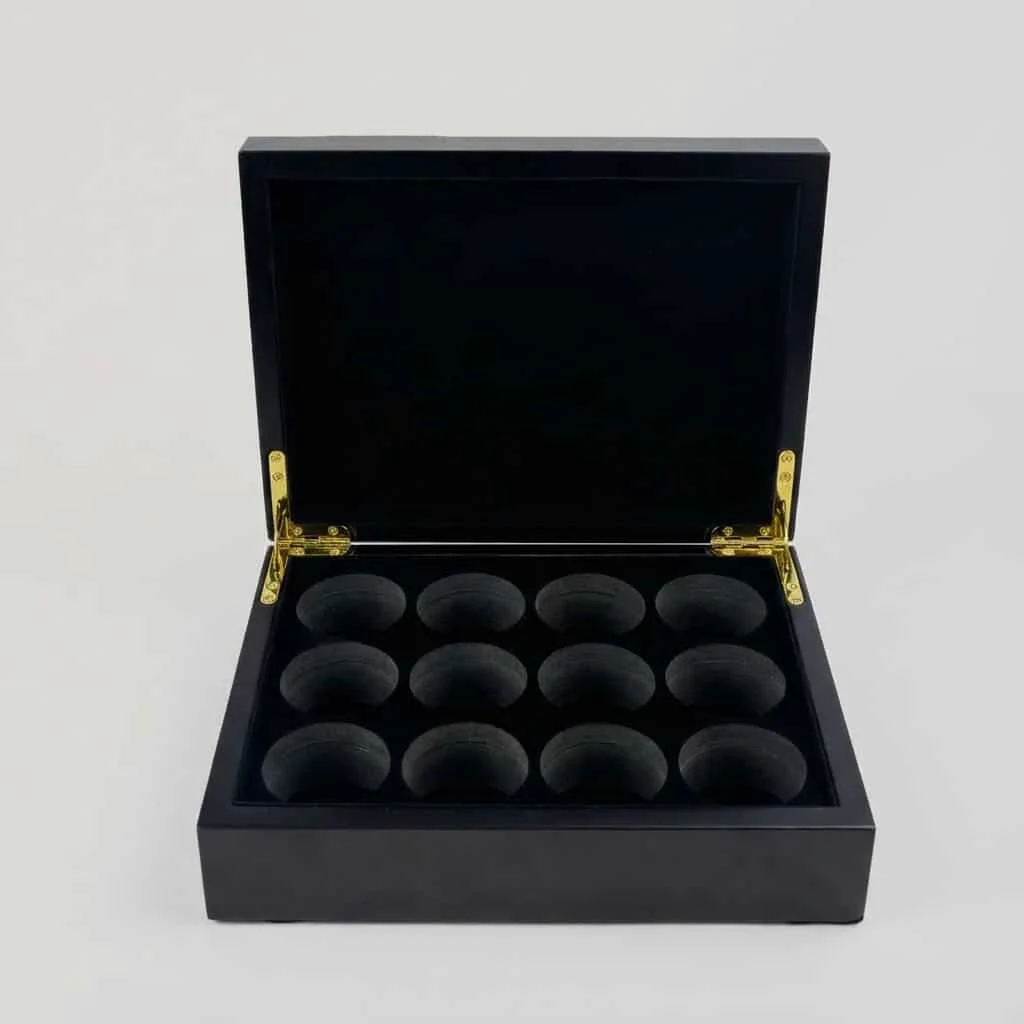

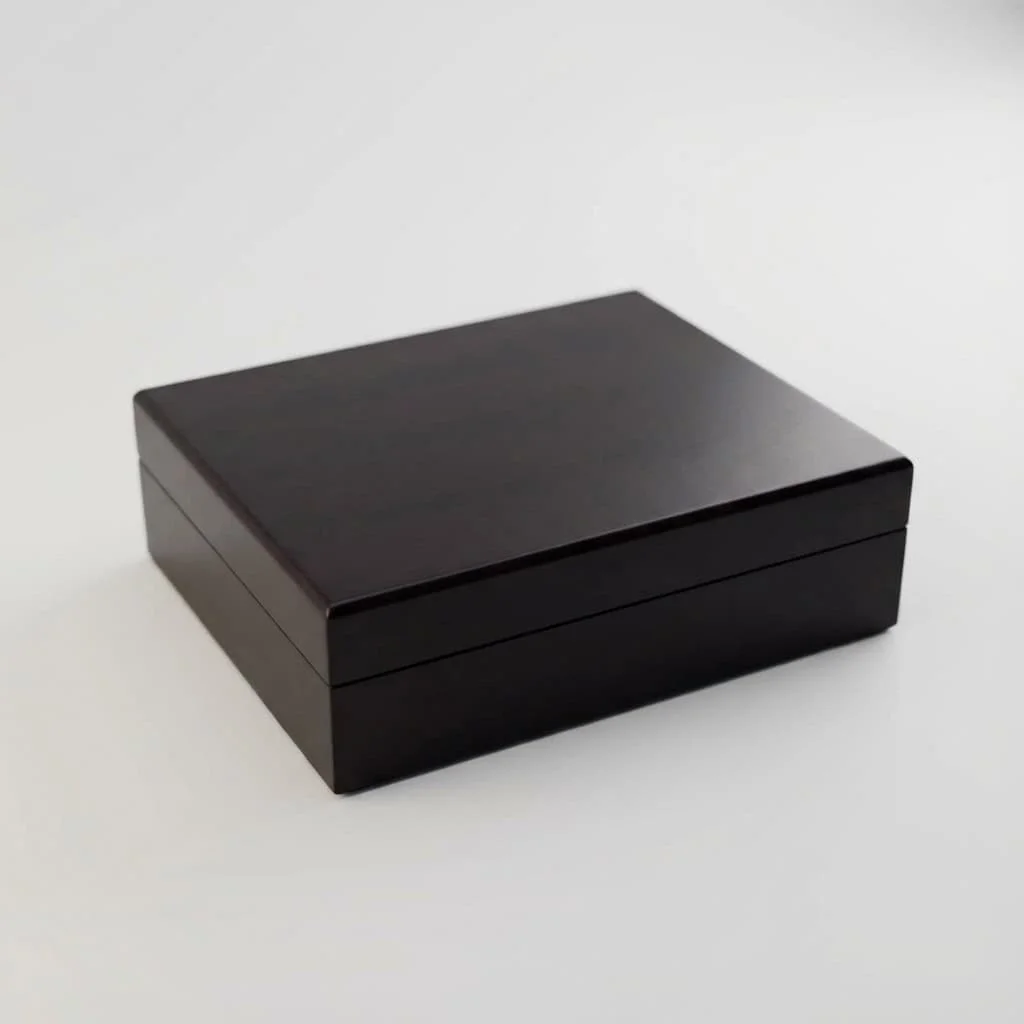

Custom Wooden Golf Ball Box for Collector Gifts

Hinged wooden display case with precision die-cut EVA foam interior, suitable for golf ball collectors, commemorative coin sets, and corporate sports gifting.

Key Features

Die-cut EVA foam interior — each ball or coin sits in its own precisely sized cavity; the foam is semi-rigid (not soft sponge) so pieces don't shift when the box is carried vertically or tilted
Hinged lid with display orientation — opens flat or at ~100° for countertop display; the lid interior can be foam-lined for a two-tier presentation or left as a presentation backdrop for branding
Lacquered wood exterior — sealed high-gloss or satin finish that resists fingerprints, dust, and handling wear; reads as permanent display furniture, not disposable packaging
Custom cavity layout — number of compartments, spacing, and cavity depth matched to your specific collectible dimensions; not a one-size-fits-all stock insert
Solid MDF or wood construction — MDF for maximum dimensional stability and the flattest surface for lacquer finishing; solid pine, oak, or walnut available for a natural grain aesthetic

Price Range

$1.50 - $6.50 / piece

Prices vary based on order quantity, dimensions, material selection, and logo printing method. Send an inquiry for a customized quote.

Specifications

Wood Type: MDF (pine, oak, walnut available)
Interior: Die-cut EVA foam with individual cavities
Design: Hinged lid with display orientation
Surface Finish: Lacquered (satin or high-gloss)
Usage: Golf ball collection, commemorative coin display, corporate golf gifting
Customization: Cavity layout, dimensions, wood type, finish, hardware, and branding

Applications

Golf memorabilia and collector display

Where limited-edition golf balls, tournament markers, and commemorative coins are presented in a case that signals their value — the EVA foam cradles each piece like a jeweler's display, and the lacquered box reads as a permanent collection piece, not temporary packaging.

Corporate golf event gifting

Where tournament sponsors and corporate hospitality programs present branded golf ball sets to clients — the box is laser-engraved with the event name and sponsor logo, and the recipient keeps the case as a desk accessory long after the golf balls are in play.

Premium product packaging for golf brands

Where golf ball manufacturers package limited-edition or commemorative ball sets in a case that elevates the unboxing experience — the foam cavities present each ball like a jewel, and the hinged lid creates a reveal moment that a cardboard box can't deliver.

Customization Options

Cavity layout: Custom configured to your collectible dimensions. Standard golf ball cavities are 43mm diameter × 30mm depth — sized for a standard golf ball with 1mm clearance for easy insertion and removal. Cavity spacing is typically 8–10mm between balls. Layouts range from single-row (3–4 balls) to full grid (6–12 balls in 2–3 rows). Non-circular cavities for commemorative coins, divot tools, or ball markers can be mixed into the same foam insert.

Wood type and finish: MDF with lacquer is standard — the most stable substrate for a high-gloss finish and the flattest surface for displaying collectibles. Solid pine for a natural wood grain look — stained or painted. Oak or walnut for premium collector-grade cases — the wood itself is part of the display value. Matte, satin, or high-gloss lacquer. Piano-black high-gloss is the most popular finish for collector display cases.

Foam insert options: EVA is standard — semi-rigid, durable, available in black, white, gray, or custom colors. Velvet flocked foam for a softer, more luxurious interior — the flocked surface prevents micro-scratches on polished collectibles. PU foam for a softer feel — less durable than EVA but lower cost. Lid interior can be foam-lined (presentation backdrop), satin-lined (soft close against the pieces), or left as finished wood with an engraved logo.

Hardware: Standard hinges and latch in brass, nickel, or antique bronze. Concealed barrel hinges for a clean exterior with no visible hinge leaves. Magnetic closure instead of latch — cleaner look but less positive closure. Locking latch for high-value collectibles.

Branding: Laser engraving on the lid top — most popular for corporate gifting and event branding. Interior lid engraving — visible when the case is open, more intimate. Hot foil stamping on the exterior. Branded metal plaque affixed to the lid — premium feel, higher cost. Silk screen printing on the foam insert — brand logo visible behind the collectibles.

Ready to get a recommendation?

Send us your requirements — we'll respond with material and production recommendations within 24 hours.

Why This Design Works

EVA foam is the right insert material for collectible display, and the cavity geometry matters more than you'd think. EVA (ethylene-vinyl acetate) is semi-rigid — it holds its shape under the weight of a golf ball but has enough give to absorb impact if the case is knocked. Soft PU foam would be cheaper but wouldn't hold the cavities crisp over time — the foam would sag and the balls would sink, losing the precise presentation. The cavity depth is set to 70% of the ball diameter — the ball sits proud by roughly 12mm above the foam surface, making it visible and graspable (you can get your fingers around it), while the 70% embedment keeps it secure against lateral movement. A shallower cavity (50%) would make the ball easier to grab but less secure; a deeper cavity (90%) would hide the ball and make it hard to remove.

The hinged lid with a display angle transforms the box from storage into a presentation piece. The hinges are set to open to approximately 100° — past vertical so the lid stays open by its own weight rather than falling closed. This matters for retail counter display and collector shelf presentation where the case stays open for hours at a time. The lid interior becomes the backdrop — it can be foam-lined to hold a second tier of balls (doubling capacity), satin-lined for an elegant hollow, or finished wood with an engraved tournament logo that frames the displayed balls below. A lift-off lid or sliding lid can't provide this display function — the lid is either on or completely removed, not standing open as part of the presentation.

MDF with lacquer is the pragmatic choice for a display piece where the collectibles are the visual focus. Solid wood grain is beautiful but it competes for attention — the eye bounces between the golf balls and the figured walnut grain. MDF with a uniform lacquer finish is visually quiet — it frames the collectibles without competing with them. MDF is also more dimensionally stable than solid wood across humidity changes — a display case that sits on a collector's shelf for years won't develop the hairline corner gaps that solid wood can from seasonal movement. The trade-off: MDF doesn't have the material story of solid wood, and at the premium end of the collector market, solid walnut or oak with a satin finish can justify its higher cost through the perceived value of natural materials.

Manufacturing Considerations

Foam cavity precision is the #1 quality requirement for this product. A golf ball in a cavity that's 0.5mm too large rattles when the case is moved — the collector hears it, and the perceived quality collapses. A cavity that's 0.5mm too small makes the ball hard to remove — the collector has to dig it out with a fingernail, which scratches the ball surface. EVA foam is die-cut with steel rule dies — the die is CNC-machined to the exact cavity diameter, and the foam is compressed during cutting so the finished cavity springs back to the target dimension. Each batch is tested with the actual collectible — the ball must insert with gentle finger pressure (no forcing), release with a gentle lift (no digging), and not fall out when the case is turned upside down (friction hold).

The lacquer finish on MDF requires specific surface preparation to avoid telegraphing the substrate texture. MDF has a slightly fibrous surface — if lacquered directly, the fibers swell and the surface feels slightly rough, not glass-smooth. We apply a sanding sealer coat first, sand back to 320-grit, then build the lacquer in 3–4 thin coats with light sanding between coats. The final surface should feel like glass — no texture, no orange peel, no dust nibs. Each lid and body panel is inspected under side-lighting after finishing — any surface imperfections are wet-sanded and re-coated.

Hinge alignment on a display case that stays open matters differently than on a box that stays closed. A box that's always closed only needs hinges that align when shut. A display case that sits open needs hinges that hold the lid at a consistent angle without wobble — if one hinge is slightly looser than the other, the lid drifts to one side over hours, looking crooked. We use hinges with controlled friction (a slight interference fit in the hinge pin) so the lid stays where it's positioned. Each case is tested by opening the lid to 100° and leaving it for 24 hours — it must not drift more than 5° from the starting position.

Have a technical concern about your use case? Our team can walk you through how we'd handle it for your project.

Hilon Wood Recommendation

Order MDF with satin black lacquer, EVA foam insert, and laser-engraved branding on the lid top for your first order. The black lacquer + EVA foam combination is the most popular configuration for golf and coin collectors — it reads as museum-display quality at a mid-range price point. Configure the cavity layout for the most common collectible size in your market (standard golf ball = 43mm diameter). Add a satin-lined lid interior for the upgrade tier — it softens the presentation and provides a visual contrast against the black foam base. Skip the solid wood upgrade on the first order — MDF with lacquer achieves the display-case aesthetic more consistently than solid wood at this price point, and the market validation comes from the foam insert quality, not the box material.

Start Your Project

Send us your design or reference images — we'll return with a pre-production sample for your approval.

Frequently Asked Questions

Can the foam insert be replaced or reconfigured after purchase?

The foam insert is friction-fit into the box base — it can be removed and replaced with a different layout. We can supply replacement inserts with alternative cavity configurations as a separate SKU. The insert is held in place by a thin adhesive strip on the base — it won't shift during normal handling but can be peeled out with moderate force for replacement.

Will the EVA foam discolor or degrade over time?

EVA foam is chemically stable and won't yellow, crumble, or outgas over time — this is why it's used in archival-quality display cases. Keep the case out of direct sunlight (the UV can eventually break down EVA, as it does all foams) and the insert will last decades. Black EVA is the most UV-resistant color option.

Does the foam hold different ball sizes, or only standard golf balls?

Cavities are die-cut to your specified diameter. Standard golf balls are 42.67mm minimum diameter — we cut cavities at 43mm for universal fit. For non-standard collectibles (commemorative coins, larger display balls, divot tools), cavities are custom-sized. Mixed layouts — e.g., 4 golf ball cavities + 2 coin cavities — are achievable in a single insert.

What's the difference between MDF and solid wood for this product?

MDF is more dimensionally stable (no seasonal movement), takes a glass-smooth lacquer finish, and is less expensive. Solid wood (pine, oak, walnut) has natural grain character and a higher perceived value but can develop minor seasonal gaps at corner joints and costs 1.5–2.5× more. MDF is the pragmatic choice for display cases. Solid wood is the choice when the box itself is a luxury object, not just a frame for the luxury objects inside.

Can the case be wall-mounted for display?

Yes. We can add keyhole hangers to the rear panel for wall mounting. The case lid would open downward or to the side depending on mounting orientation. For wall-mounted display, we recommend adding a magnetic or friction catch to hold the lid in the open position so it doesn't swing closed. Specify wall-mount intent during inquiry so we configure the hinge orientation correctly.
